Description

RUGGEDCOM RS416-F-RM-24-XX-3D-3D-XX-XX-FX04-TX01-XX HARDENED MANAGED ETHERNET SWITCH SERIAL DEVICE SERVER

6GK6041-6AT21-0DC0-Z A01+B01+C00+D00+E07+F01

NOTE: Power Cords, Optional brackets and Other Accessories are sold separately.

For quantity pricing and lead times call 610-277-6995 or email [email protected]

The RUGGEDCOM RS416 is an industrially hardened serial device server with an integrated, fully managed, Ethernet switch, designed to operate reliably in electrically harsh and climatically demanding environments. 128-bit Encryption; up to 16 serial ports& up to 4 Ethernet ports, Copper or Fiber options; Supports IEEE 1588 v2; Non-blocking, store and forward switching

1 24 = 24 VDC (10-36 VDC)

0 XX = no power supply

D RM = 19" Rack Mount Kit

C F = Ethernet on front; LED panel on front; power connector on rear

0 XX = Manufacturing modification: none

A01 3D = 4x RS232/RS422/RS485 via DB9 Coating

B01 3D = 4x RS232/RS422/RS485 via DB9

C00 XX = none D00 XX = none

E07 FX04 = 2x 100FX - singlemode 1300nm, ST, 20km

F01 TX01 = 2x 10/100Tx RJ45

RUGGEDCOM RS416-F-RM-24-XX-3D-3D-XX-XX-FX04-TX01-XX HARDENED MANAGED ETHERNET SWITCH SERIAL DEVICE SERVER

Brand: RUGGEDCOM
Product Code: RS416-F-RM-24-XX-3D-3D-XX-XX-FX04-TX01-XX
Availability: In Stock

$4,899.00
Ex Tax: $4,899.00

Please call or email us to confirm accurate current pricing and lead time for this product.

Qty

RUGGEDCOM RS416-F-RM-24-XX-3D-3D-XX-XX-FX04-TX01-XX HARDENED MANAGED ETHERNET SWITCH SERIAL DEVICE SERVER

$4,899.00

Related Products

RUGGEDCOM M2100 MIL-STD 19-Port Modular Managed Ethernet Switch with Gigabit Uplink

RUGGEDCOM M2200 MIL-STD 9-Port Managed Gigabit Ethernet Switch, 128-bit Encryption

RUGGEDCOM i800 8-Port Managed Gigabit Ethernet Switch, 128-bit Encryption

RUGGEDCOM I802-U-U-FX11-C01- 6GK6008-2AS20-0UU1-Z A02 6-Port 10/100Tx Managed Gigabit Ethernet Switch, 128-bit Encryption

RUGGEDCOM 6GK6000-8FG51-0AA0 SFP, 1 X 1000MBIT/S, 1000BASE-SX, LC-Interface, Optical: Multi Mode

RUGGEDCOM RS900GP-D-FG52-XX 6GK6090-0PS20-0BA0-Z A13 Utility Grade Managed Switch, 8 10/100BaseTX, Up to 2 X 100/1000BaseFX

RUGGEDCOM RPS1300, 6GK6000-8HS01-0AA0 B DIN Mount A13 FG52 = 2 x 1000LX SFP - Singlemode, 1310nm, LC, 10km

RUGGEDCOM RPS1300 GK6000-8HS01-0AA0 Power Supply, 54 V / 2.6A, INPUT: 120 / 230 V AC, OUTPUT: 54 V/2.6 A DC, -40C to +75C

RUGGEDCOM 6GK6000-8BA00-0AA0 43-10-0007 NEMA 5-15P plug with lugs for screwable terminal blocks, 6 ft.

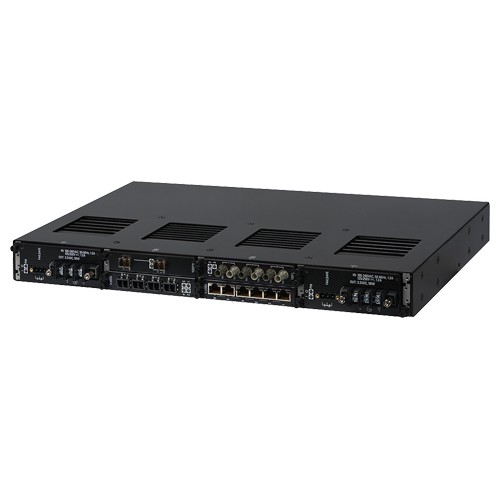

RUGGEDCOM RX1500 Utility Grade Layer 2 / layer 3 Switch Router, Up to 24-ports 100FX, 10/100TX, Up to 8-ports Gigabit Up to 12 ports 10FL/100SX
